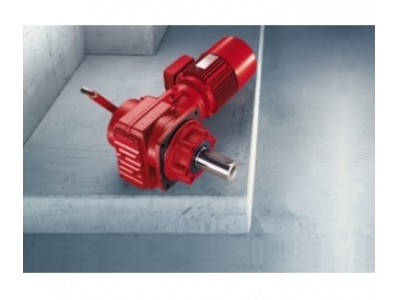

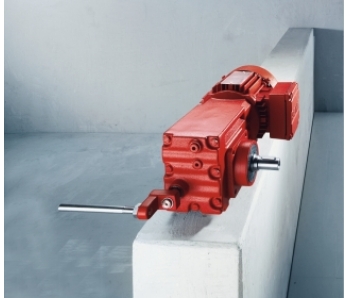

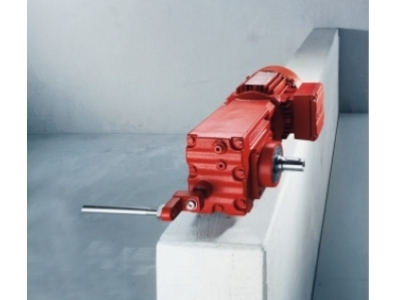

SEW HW/HK/HS series reducer

SEW HW/HK/HS series reducer

Detailed

SEW HW/HK/HS series reducer

Product Name: hanging car dedicated HW/HK/HS series reducer motor

Product parameters

SEW-EURODRIVE suspension vehicle system design with built-in clutch special reducer motor. According to the load is divided into two parts of heavy and light load:

Light: in accordance with VDI3643 standards (C1 standards) suspension vehicle system

Heavy load: suitable for heavy-duty suspension vehicle system

This drive can optimize the transportation flow speed, transmission line and load.

Advantage

Permissible radial load

Energy saving

Suitable for frequency control

Can be used with various combinations of SEW-EURODRIVE module

Light load -HW30 / HS40 series

Light load and low noise driven, very quiet, and in accordance with the C1 standard (VDI standard 3643). The shaft of the motor and reducer reducer will be separated by a clutch of a built-in, advantages are as follows:

Low maintenance cost, high practicability

Smooth running, no vibration

Low noise

Compact structure, saving installation space

Technical data
Model	The maximum output torque [Nm]	The allowable wheel load [N]	Stress point x [mm]	帶Ø 125mmThe running speed of the conveying wheel [m/min]	Velocity ratio	The shaft diameterd x l [mm]
HW30	70	5,600	13	7.3 to 67	8.2 to 75	20 × 35 25 × 35
HS40	130	6,500	13	2.7 to 75	7.28 to 201	20 × 35 25 × 35

Heavy -HS / HK series

The development trend of the heavy has become increasingly apparent. Because the efficiency of helical gear, bevel gear reducer is obviously higher than that of helical gear - worm reducer, so SEW-EURODRIVE will be extended to HK series suspended car series. HK series running wheel load can reach 40000N (8992.4 LBF). With the MOVITRANS ® without using the contact energy transmission system, energy consumption fell sharply. Can help you transport system to obtain greater profits space。

Technical data
model	The maximum output torque [Nm]	The allowable wheel load [N]	Stress point x [mm]	The running speed of the conveying wheel [m/min]			Velocity ratio	diameterd x l [mm]
model	The maximum output torque [Nm]	The allowable wheel load [N]	Stress point x [mm]	Ø 200 mm	Ø 250 mm	Ø 300 mm	Velocity ratio	diameterd x l [mm]
HS41	185	10,000	13	4.4 to 120	–	–	7.28 to 201	25 × 35
HS50	300	15,000	18 28	4.4 to 120	5.4 to 151	–	7.28 to 201	30 × 60 35 × 70
HS60	600	25,000	28	4.0 to 116	5.1 to 145	6.1 to 175	7.56 to 217.41	45 × 90
HK30	200	10,000	13	8.3 to 68	–	–	13.1 to 106.38	25 × 35
HK40	400	18,500	18 28	6.7 to 72	8.3 to 90	–	12.2 to 131.87	30 × 60 35 × 70
HK50	600	25,000	28	6.1 to 66	7.6 to 83	9.1 to 100	13.25 to 145.14	45 × 90
HK60	820	40,000	32	6.1 to 66	7.6 to 83	9.1 to 100	13.22 to 144.79	55 × 110
