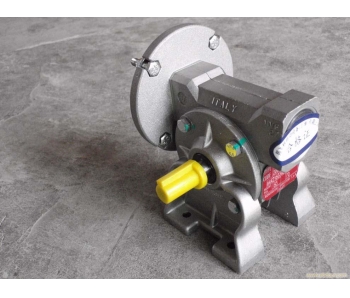

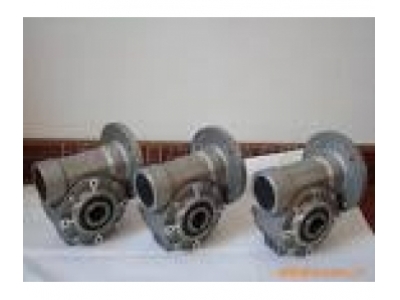

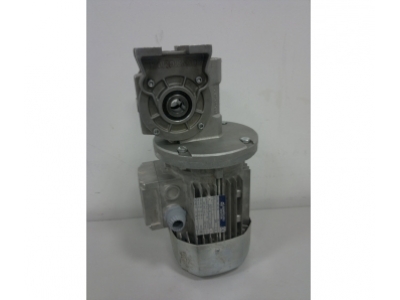

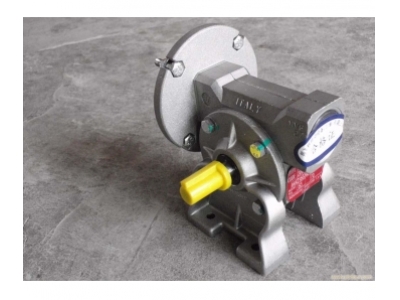

Reminder: VF series reducer

VF series worm reducer design and use of materials and manufacturing technology is the most advanced, has the advantages of compact structure, reliable quality, variety of installation position and with torque limiter optional features, helical gears - worm and worm gear reducer can be combined to provide more dual drive system.

Reminder: VF series reducer

VF series worm gear reducer design and use of materials and the most advanced manufacturing technology, has the advantages of compact structure, reliable quality, variety of installation position and with torque limiteroptional features, oblique gear-worm gear with double worm gear reducer can be combined to provide more drive system.

Model torque Nm

VF 2713

VF 3024

VF 4455

VF 4988

VF 130200

VF 1501500

VF 1852000

VF 2105000

VF 2507100

Torque range

13Nm... 7100Nm

Rated mechanical power (n1=1400min-1),0.04KE... 75KW,Speed ratio,7 10000,Output type,Single hollow shaft,Solid shaft output

Torque limiter (optional),The input type,Flange mounting of IEC motor,Solid input shaft,Alternating current dynamo,IEC standard motor and brake motor -BN series,Single speed and double speed motor,Braking characteristics,DC and AC braking,Can realize fast brake release,AC DC rectifier block SB, NSR, SBR (option),The main motor options,Thermal resistance and thermal switch,Forced cooling fan,Linear actuator with incremental encoder,Widely used in wind energy

equipment, and industrial equipment.
